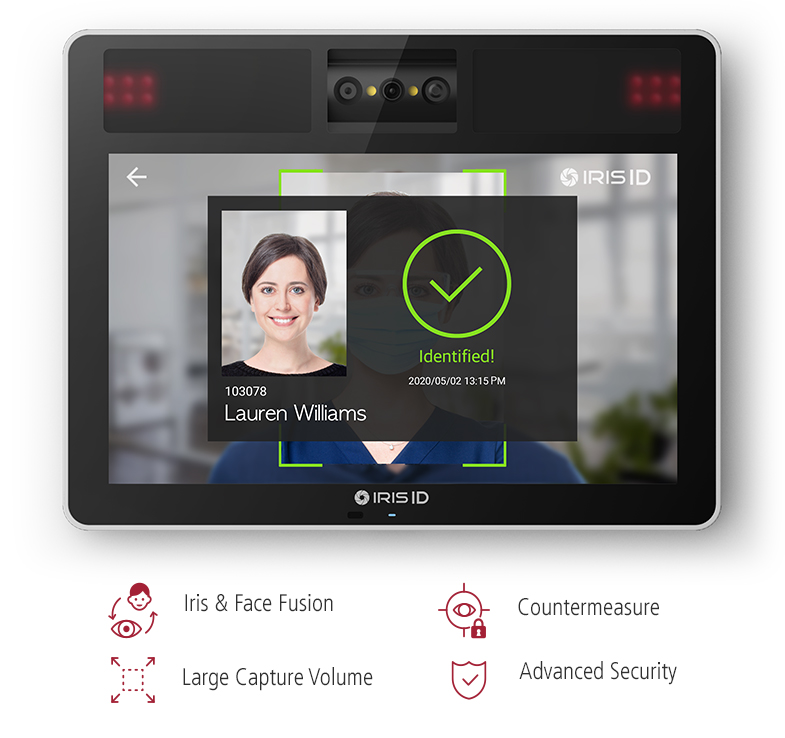

iT100 – Iris & Face Recognition System

The iT100 is Iris ID’s newest non-contact biometric offering that features both iris and facial recognition technology. Automatic recognition of iris and/or face is possible. A large capture volume allows for increased flexibility, speed and convenience. Enhanced security through Secure Boot and an open Android Platform provides an opportunity for third party application development.



Features

IRIS/FACE Fusion
Operates in Iris only / Face only / and, or, fusion mode. Select and use according to the biometric security environment.
Simultaneous Biometric Capture
Automatically captures dual iris and face at the same distance.
Countermeasures
A proven set of anti-spoof measures that continues to set the standard for the industry is included.
Non-Contact Authentication
Automatically captures faces and iris naturally up to 24 inches or 60 cm.
7inch Multi Touch Display
Easy on device setting & user enrollment available with Self-guidance with live images on 7” multi Touch LCD.
Eye Safety Certified
Tested and meets UL, ANSI, and international eye safety standards.
Automatic Tilt Adjustment
The Camera automatically finds user and moves to a location where the user’s eyes and face can be photographed.
Advanced Security
Information is encrypted, Secure Boot platform and Advanced Network security.
Large Capture Volume
Quickly and easily authenticates just by looking at the screen with wide recognition range of Iris 30~60cm(12~24”) & Face 30~80cm(12~32”).
Open Android Platform
Open Android Platform provides for third party application development.

User Interface

Identification Mode

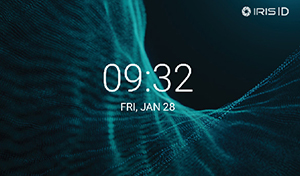

1. Main

2. Capture

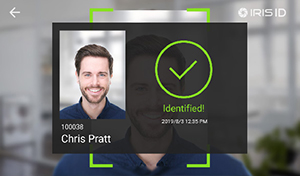

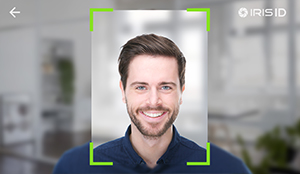

3. Identification Success

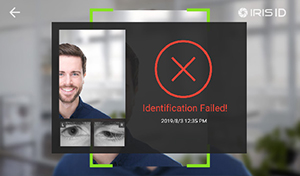

4. Identification Failure



How to positioning

1. Idle

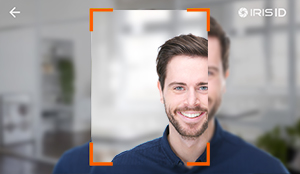

2. Detect left

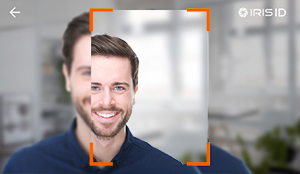

3. Detect right

4. Detect

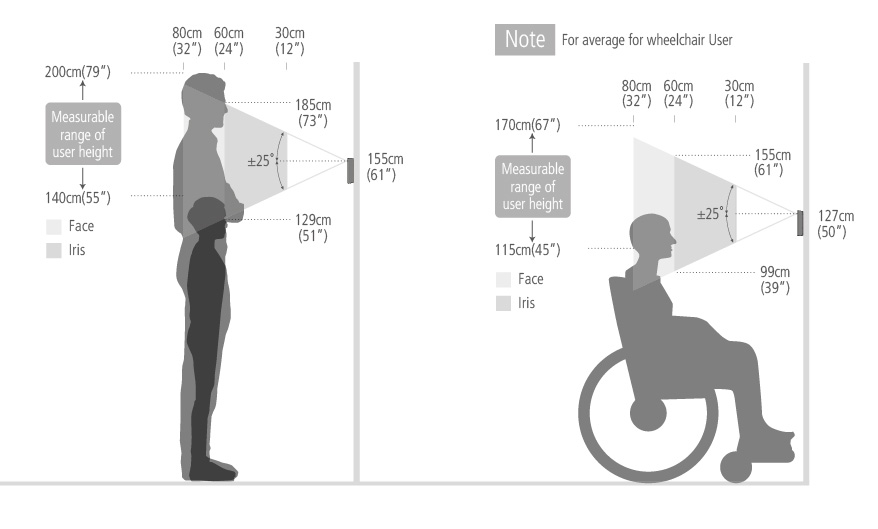

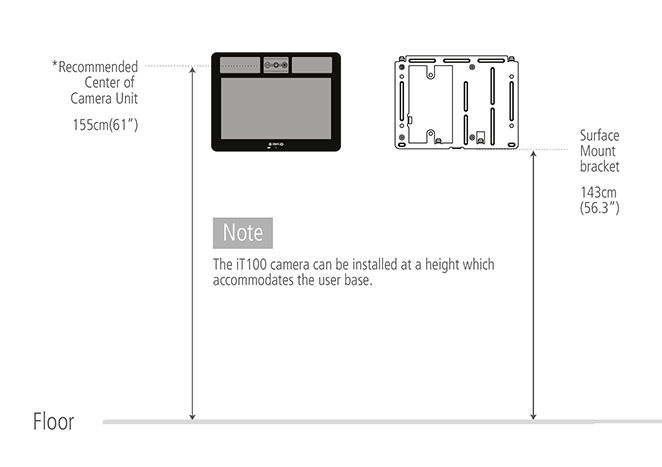

Installation


Tech Specs

Features
Dimensions (WxHxD) 7.08” x 5.39” x 1.18” (180mm x 137mm x 30mm)
Weight 1.2lbs (543g)
Type Walk-up
Power Input / Consumption 12 – 24 VDC (auto – +/- 500 mv ripple voltage industry standard) / Max. 30watt
OS Android OS 7.1
User Interface Self-guidance with displayed images in LCD
Operation Iris and or Face, Face + Iris Fusion
User Capacity Up to 5,000 1:N, 100,000 1:1 users
Transactions Number of transaction logs on device DB: 1M (Iris) / 100,000 (Face)
Encryption AES256
Matching Speed Less than 1 sec
Languages Support multiple languages and characters simultaneously
English & Korean / Additional language pack downloadable
Tilt Auto Range: -25° ~ +25°
USB 1 Port
Memory 16GB
Tamper Detection Yes
Algorithm IrisCapture / DualEyeInfo™ / Countermeasure / Face Matching
Real Time Clock Internal battery
Proximity detection ToF Sensor
Connectivity Ethernet or Wi-Fi (optional) Relay
Certifications CE, FCC, KC, Eye Safety, UL294
Temperature Operating: 32 ~ 113℉ (0 ~ 45℃)
Storage: -4 ~ 194℉ (-20 ~ 90℃)
Optics
Distance Sensing Dual Sensors for high accuracy
Iris / Face Camera 5MP B/W CMOS image Sensor / 5MP Color CMOS image Sensor
Image Resolution ISO Compliant
F/# F/2.4
AF Iris Camera: Auto Focus
Face Camera: Auto Focus
Output Image / Template Iris Template : 512 byte per eye, Face Template 2KB
Face Image (Preview): 480 x 640
Face Image (Streaming): 720×1280
Face Image (Capture Mode): 480×640, 960×1280, 1920×2560
Iris Capture IR LED ANSI ISO Eye Safety certified
Operating Range Iris Camera: 11.8 ~ 23.6“ (300mm ~ 600mm)
Face Camera: 11.8 ~ 31.5”max (300mm ~ 800mm)
External Interfaces
Serial RS232 for external smart card reader
Relay 1 Dry contact for Door\Gate activation
GPIO Configurable 2 GPIO’s- Programmed by application developer
USB USB 2.0 Host for DB up/download
Connectivity Wired Ethernet or Wireless LAN (Optional)
Wiegand Wiegand In/Out
Speaker 27x20mm, 89dB at 1 meter
