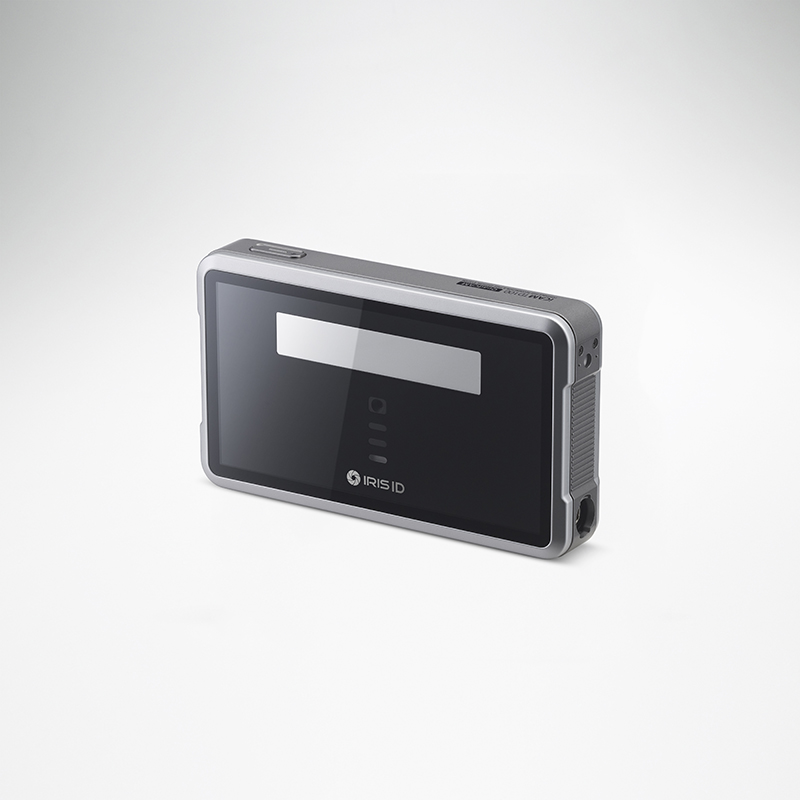

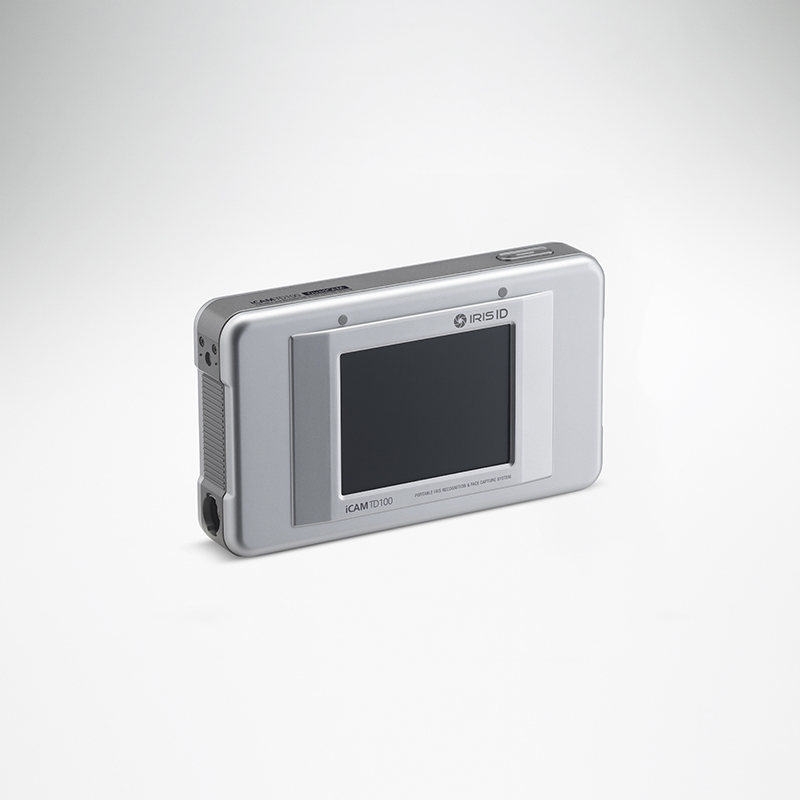

iCAM TD100A

Features

    • High Speed Automatic Dual Iris Capture
    • High Quality Color 2D Face Capture
    • Single Motion Automatic Iris and Face Capture
    • Intuitive Operator LCD Guidance System
    • Standards Compliant Hardware and Software

The iCAM TD100A can be ordered in one of three configurations as noted above. A fully compliant USB 3.0 PC can use the iCAM TD100A-U or iCAM TD100A-C. Older PC’s with a USB 2.0 port requires the use of the external
power supply and Siamese cable included with the iCAM TD100A.

Iris ID has been producing commercial iris recognition systems since 1997. In thousands of locations, IrisAccess® authenticates the iris identity of more persons than all other iris platforms combined. Iris ID’s rich experience in iris recognition is exemplified in the iCAM TD100.

Previous handheld iris recognition systems required significant cooperation and for a subject to remain completely motionless in order to capture high quality iris images. Iris ID has developed a series of algorithms which provide the capability to capture iris images while either the person or the device is in motion. The “iris in motion” capability helps to realize new horizons in market applications for the technology.

High Speed – Dual Iris Capture

The iCAM TD100 includes an optical system specifically designed and optimized to operate in perfect unison with the integrated high speed multi-sensor iris imager array. The iCAM TD100 automatically processes and outputs high quality ISO standards compliant iris images of a subject in less than one second as the device or the subject approaches the optimum capture distance.

Iris Image Capture Process

Fully automatic dual iris image capture and quality analysis routines are available as a part of the Iris ID SDK API set for the field application of the iCAM TD100. An illustration of the iris capture GUI screen is shown below. Iris ID’s iData SDK runtime license for iris enrollment and quality assessment is available for use with the iData TD100 module subsystem. Iris and face capture are performed by the operator extending their arm from the face capture distance to the iris capture distance as illustrated below.

pg_text_TD_diagram

TD_IrisCapture_Images

Face Image Capture Process

The face capture API function is included in the SDK.

  • The integrated framing function provides feedback for the capture of a properly formatted ISO/ICAO face image.
  • Manual face capture with auto focus is also possible through the camera calls in the iData SDK sample application.
  • An application developer can also use host based face finding to trigger the face capture automatically from the host processor.
  • Face capture can be initiated through API or via the shutter button on the iCAM TD100A.
  • Sample illustrations of face capture modes are shown below.

TD_FaceCapture_Images

Tech Specs

iCAM TD100A
Dimensions (WxHxD) 5.9” x 3.3” x 1.2” (150mm x 83mm x 30.5mm)
Weight 0.5lb (0.23kg)
Power Input 5VDC
Power Consumption Idle 2.3W Typical 4.3W Max 5.5W
Iris Capture Automatic Dual Iris Capture
Capture Distance 330 +/- 20 mm
ISO/IEC 19794-6 Standards Compliant Image
High Quality
Face/Scene Capture 2560 x 1920 5MP Image Sensor – 2.3 mm @ F# 2.2
Voice Indication English and Korean standard, others languages available
Iris Illumination Multiband IR
Iris Enrollment Less than 2 seconds for complete two iris capture
Less than 8 seconds for complete transaction (includes face & iris)
Face Capture ISO/IEC 19794-5 Standard Compliant Image
Approximately 19”~ 36” from subject for proper framing
Manual or Auto Focus available
Scene Capture Manual or Auto Focus available through API
Sound Software volume control level
Audio files can be uploaded to iCAM TD100A
Standard Iris ID sound files are loaded at a time of shipment
Speaker 1W Xmm dia speaker
LCD Display 3.5″ Color LCD / 380 NIT
Status Indicator Blue Blinking – Start Up
Blue – Power On
Green – Identification OK Both Eyes
Green Blinking – Identification OK One Eye
Red – Reserved
Red Blinking – Reserved
Shutter Button Wake Up / Capture Face / Capture Scene / Force Iris Capture
Meta Data Available
Minimum Illumination (Face camera) 1 lux
Operating Range 14″ (36cm)
Operating Temperature 32°F – 120°F (0°C – 50°C)
Storage Temperature -4°F ~ 140°F (-20°C ~ 60°)
Humidity 0% ~ 95% Non-condensing
Interface High Speed USB 2.0
Equipment supplied with iCAM TD100A USB+Power Cable, 5VDC Power Supply 120/240VAC 50/60Hz
PC Requirements Operating System: Window® 7/XP/Vista
Processor: Pentium®4 1.6GHz or higher
Memory: 512MB or higher
Hard Disk: 5GB (Sample Applications) or higher
Certifications CE, FCC, KC, Eye Safety, ISO Standard,
