iCAM TD200

Features
-
- Simultaneous Iris and Face Capture
- High-Quality Color 2D Face Capture
- High-Speed Automatic Dual Iris Capture
- Intuitive Operator LCD Guidance System
- Standards-Compliant Hardware and Software
Iris ID has been producing commercial iris recognition systems since 1997. In thousands of locations, IrisAccess™ authenticates the iris identity of more persons than all other iris platforms combined. Iris ID’s rich experience in iris recognition is exemplified in the iCAM TD200.
Previous handheld iris recognition systems required significant cooperation and for a subject to remain completely motionless in order to capture high quality iris images. Iris of Face can be collected simultaneously or independently based on the application needs. Iris ID has developed a series of algorithms which provide the capability to capture iris images while either the person or the device is in motion. The “iris in motion” capability helps to realize new horizons in market applications for the technology.
One Shot – Simultaneous Iris & Face Capture
The iCAM TD200 includes an optical system designed and optimized to operate in perfect unison with the integrated high-speed multi-sensor imager array. The iCAM TD200 automatically processes and outputs high quality ISO standards compliant Left & Right Iris & Cropped Color face images of a subject One-shot in less than two seconds as the device or the subject approaches the optimum distance.
Image Capture Process
Fully automatic concurrent dual iris and face image capture is supported with the iCAM TD200. Iris and face images are collected virtually at the same time. The quality analysis routines ensure all images are ISO-compliant and are available as a part of the Iris ID SDK API set for the field application of the iCAM TD100. An illustration of the iris capture UI screen is shown below. Iris ID’s iData SDK runtime license for iris enrollment and quality assessment is available for use with the iCAM TD200.
The face capture API function is included in the SDK.
- The integrated framing function provides feedback for capturing a properly formatted ISO-compliant face image.
- Manual face capture with auto focus is also possible through the camera calls in the iData SDK sample application.
- Application developers can also use host-based face detection to trigger face capture automatically from the host processor.
- Face capture can be initiated through API or via the shutter button on the iCAM TD200.

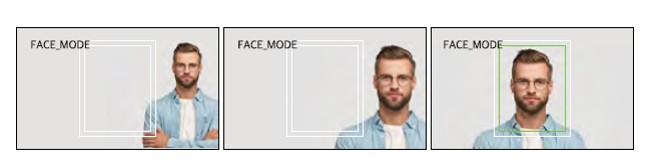

- Sample illustrations of face capture modes are shown below.
iData iCAM TD200 SDK
Iris ID provides and API SDK to enable all functions of the iCAM TD100 and the iCAM TD200. The development environment and functionality of the SDK for the iCAM TD200 module closely mimics those of the widely deployed iData SDK. Application developers familiar with the Iris ID APIs will find integration to be simple.
Sample Application Source Code
The sample application source code for the sample GUI will be delivered as part of the SDK API. Sample SDK code is provided in C++ and C#.
Demonstration Application
A runtime-only application is available for customer evaluation, providing functionality for iris and face image capture, as well as iris template matching.
Tech Specs
| iCAM TD200 | ||
| Dimensions (WxHxD) | 5.9” x 3.3” x 1.2” (150mm x 83mm x 30.5mm) | |
| Weight | 0.5lb (0.23kg) | |
| Camera Tripod Mount | Standard 1/4 20 tripod mount | |
| Power Input | 5VDC via USB | |
| Power Consumption | Idle 2.3W Typical 4.3W Max 5.5W Automatic Dual Iris | |
| Iris Capture | Autofocus Capture ISO/IEC 29794-6 Standards Compliant Image |
|
| Face/Scene Capture | 480 x 640, 768 x 1024 ISO Automatic Crop, Token & Full-Frontal Face SMT-Scene 2560 x 1920 12 Available Models for Capture |
|
| Iris Illumination | Singleband IR | |
| Iris Enrollment | Less than 2 seconds for complete two iris capture Less than 2 seconds for complete transaction (includes face & iris) ISO/IEC 29794-6 Standard Compliant |
|
| Face Capture | Manual or Auto Focus available Capture ISO/IEC 19794-5 Standard Compliant Image |
|
| Scene Capture | Manual or Auto Focus available through API | |
| Sound | Software volume control level Audio files can be uploaded to iCAM TD200 Standard Iris ID sound files are loaded at a time of shipment |
|
| Speaker | 1W 17mm diameter speaker | |
| LCD Display | 4.3″ Color LCD | |
| Status Indicator | Blue Blinking – Busy-Booting Blue Solid – Ready to Capture Green – Success on for Two Seconds Red Solid – Capture Complete Red Blinking – Image Failed QC No Indicator – Power Off | can also be controlled by the application directly |
|
| Shutter Button | Wake Up / Capture Face / Capture Scene / Force Iris Capture | |
| Meta Data | Available | |
| Operating Range | 15″~24″ (40cm~60cm) | |
| Operating Temperature | 32°F – 120°F (0°C – 50°C) | |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ 60°) | |
| Humidity | 0% ~ 95% Non-condensing | |
| Certifications | CE, FCC, KC, ISTA, USB IF, Eye Safety, ISO Standard | |
