R100 series

OEM Iris Recognition Camera Module

Features

DUAL IRIS FACE CAMERA FLASH LED
USB TRIPOD
  • High Speed Iris Capture & Matching in a compact package
  • On or Off Device Iris Template Matching
  • Up to 100K User record local 1:N matching in 1 second
  • National ID Quality Iris Image – Standards Compliant
  • Intuitive User Interface with Virtual LED Indication
  • 5 MP face camera White LED flash
  • Comfortable Capture Distance 28~38 cm (11~15 Inches)
  • Flexible Mounting Options
  • USB 3.0 Powered

Iris ID has been producing commercial iris recognition systems since 1997. In thousands of locations, IrisAccess® authenticates the iris identity of more persons than all other iris platforms combined. Iris ID’s rich experience in iris recognition is exemplified in the iCAM R100.

Previous handheld iris recognition systems required significant cooperation and for a subject to remain completely motionless in order to capture high quality iris images. Iris ID has developed a series of algorithms which provide the capability to capture iris images in any environment.



High Speed – Dual Iris capture

The iCAM R100 performs high-speed dual iris capture and outputs high quality ISO standards compliant images. Both eyes can be simultaneously captured. The R100 provides an unparalleled intuitive user interface, which makes the process easier for the user and operator. The R100 is also equipped with an orientation sensor and left and right iris capture management controls which can be selected prior to or during the process.

User Interface

OEM Applications

  • Kiosks
  • Portable Enrollment Systems
  • Time & Attendance Clocks
  • Iris Identity Dependent Application
    • Public Safety
    • Entitlement Programs
    • National ID

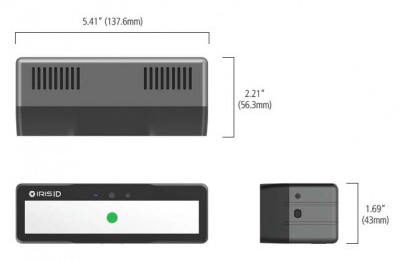

Mechanical Drawing
R100 user interfaceAccessory (Cradle)R100 accessory

Capture Volume R100 Capture volume

iDATA iCAM R100 SDK
Iris ID provides an API SDK to enable all functions of the R100-series. The development environment and functionality of the SDK for the R100-series module closely mimics those  of  the  widely  deployed  iData  SDK  for  the  IrisAccess  iCAM  series  cameras. Application  developers  familiar  with  the  other  Iris  ID  development  tools  will  find integration to be very simple.

SDK Versions
Three versions of the SDK are available:

  • Image Capture only
  • Image Capture & Quality Metrics
  • Image Capture, Quality Metrics and Matching

Sample Application Source Code
The sample application source code is delivered as a part of the SDK. Sample SDK code is provided in C++ and C#.

Demonstration Application
A  runtime  only  application  is  available  for  customer  evaluation  which  provides  the functionality to perform iris image capture and iris template matching.

Tech Specs

R100 series (OEM Iris Camera Module)
Dimensions (WxHxD) 55.41″ x 2.21″ x 1.69″ (137.6mm x 56.3mm x  43mm)
Weight 0.52lbs (240g)
Power Input USB Powered (3.0 Port Only)
Power Adapter Powered, 5VDC
Operational Power: 4.3 watts/Standby Power: 2.3 watts
Iris Camera 1.2MP Auto & Manual Dual Iris Capture with B&W Image Sensor
Iris Capture Range 11″~ 15″ (28cm ~ 38cm)
Face Image Camera Face Camera CMOS – 5MP
Flash High Output Flash for Face Capture
Interface USB 2.0 (or higher)
Orientation Sensor Built-in Orientation Sensor
Indication External: Blue LED – Power Indication, Green / Red / Amber LED – Status
Internal: Green LED for Right Eye Positioning
Sound (Optional by Application)
Speaker 1.2W
SDK Windows COM, Android, Embedded LINUX
Operating Temperature 32°F ~ 122°F (0°C ~ 50°C)
Storage Temperature -4°F ~ 203°F (-20°C ~ 95°C)
Humidity 0 ~ 95% Non-condensing
Certifications CE, FCC, KC, Eye Safety, ISO Standard, KISA

Items Required for Use of This Product

Required Equipment (not provided by Iris ID)

  • Windows based PC (Windows XP (32-bit) / Windows 7 (32/64-bit) / Windows 8 (32/64-bit) / Windows 10 (32/64-bit)

Minimum Computer requirements

  • Microsoft Windows XP (32-bit), Windows 7 (32-bit), or Windows 7 (64-bit) OS
  • 512MB RAM (or higher)
  • x86 Processor, 2.0 GHz (or higher)
  • 2GB available HDD space or above
  • Microsoft .NET Framework ver. 3.5
  • Mouse, SVGA Monitor, Keyboard
  • Dedicated USB 2.0 port (or higher)
  • USB 2.0 port may be used but the iCAM R100 will require external power adapter.
    USB 3.0 or higher is recommended.

Optional Support for:

  • Android Devices
  • Embedded LINUX devices



N O T E        An available and dedicated USB 2.0 compliant port is needed to properly use the iCAM R100.
