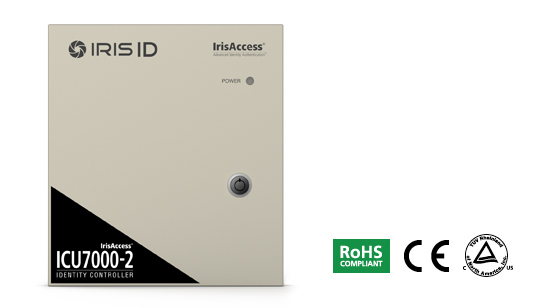

ICU7000-2

Features

icu7000-2_main
The ICU 7000-2 is an optional component used when the client requires iris template data to be matched on the secure side of the door. When using ICU no data is stored in the iCAM7 Iris Reader itself. The ICU also ensures that portal operation can continue if the re is an interruption in communication with the host computer. In such circumstances, the ICU retains the records of portal activity, then automatically updates the host upon resumption of host communication. Every ICU in the iCAM4000 / 7 series runs on a LINUX OS for added reliability. Independent and fault tolerant, ICUs are connected up to 2 iCAMs and handle up to 100,000 users.

Features

  • Supports all iCAM7 series Camera Units
  • iCAM4000 series Support Available
  • Comes with Power Supply Included *
  • Easy Installation
  • Handles Large Database to 100,000 Users
  • Programmable Alarm Inputs and Outputs
  • Programmable Relays for Customized Functions
  • Available with 2 Remote Channel Wiegand In/Output
  • Surface Mount Installation
  • ICU Case Lock

* Power Supply Specs: Input / Output: 12~24 VDC, 2.0 Amps @ 12 VDC / 24W

Tech Specs

ICU7000-2
Dimensions (WxHxD) 8.66″ x 9.65″ x 2.0″ (220mm x 245mm x 51mm)
Weight 3.0lbs (1.4kg)
Power Input / Consumption 12~24 VDC, 2.0 Amps @ 12 VDC / 24W
Indication External Green LED for Power Indication
Operating Temperature 32°F ~ 122°F (0°C ~ 50°C)
Storage Temperature -4°F ~ 203°F (-20°C ~ 90°)
Humidity Up to 95% non-condensing
Communications Ethernet (LAN, WAN)
Inputs / Outputs 2 Remote Channel (Wiegand In/Out, Dry Contact Relay x 2, Programmable GPIO x 4, RS422) x 2
Certifications CE, FCC, KCC, UL294
