Iris ID Systems has been the key developer and driver of the commercialization of iris recognition technology since 1997. IrisAccess®, now in its sixth generation, is the world’s leading deployed iris recognition platform. In thousands of locations, IrisAccess® authenticates the iris identity of more persons than all other iris platforms combined. Iris ID’s rich experience in iris recognition is exemplified in the iCAM D1000.
The Iris ID Systems iCAM D1000 product line provides a high quality standards compliant iris and face capture solution. iCAM D1000 devices are fully backward compatible with the complete line of iCAM series devices. Iris ID continues to protect our customers and enhance our product line by maintaining support for previous generations of products. The iCAM D1000 allows for easy integration with virtually any identity dependent application.
Iris ID’s engineering and design teams have further enhanced the user experience of the iCAM D1000 device. This unique device provides for easy quick and high quality simultaneous capture of ISO compliant iris and face images. Iris ID’s biometric solutions provide highly accurate, non-contact identification from about a meter away while delivering security, convenience, privacy and productivity to millions of people around the world.
Fully automatic dual iris image capture and quality analysis routines are available as part of the Iris ID Device Control SDK for integration of the iCAM D1000. Iris ID’s iData SDK runtime license for iris enrollment, matching and quality assessment is available for use with the IrisAccess iCAM D1000 subsystem.
- Intuitive User Interface with Real-Time Visual Feedback
- Long Capture Range For Face and Iris (75cm ±25cm)
- Auto Zoom & Auto Focus Iris Cameras
- High Quality Image Capture
- Automatic Face Illumination
- On Board Encoding & Matching (option)
- Integrated Floor Stand
- Stand-off Identification up to 75cm ±25cm away
- Easy to Use – Ideal for Casual Users
- Ultra High Speed Simultaneous Iris & Face Capture
- Enrollment and Face Images Captured at Same Distance
- Standards based Multimode Iris & Face Capture (ISO, ICAO)
- Ideal for Enrollment or Authentication
The iCAM D1000 contains an optical system designed to operate with the integrated high-speed multi-sensor iris imager array. The iCAM D1000 will automatically process and outputs high quality ISO standards compliant iris images of a subject in less than one second.
iData iCAM D1000 SDK
Iris ID provides an SDK to enable all functions of the iCAM D1000. The development environment and functionality of the SDK for the iCAM D1000 module closely mimics those of the widely deployed iData SDK for the IrisAccess series cameras. Application developers will find integration to be very simple and robust.
||Stand-Off Optical Unit with Embedded PC
||COM SDK Connected to PC
Capture Iris and/or face images
Iris image transfer (ISO 19794-6)
Face image Transfer (ISO 19794-5)
Iris Recognition – Iris ID Matching Algorithm (optional)
||Less than 2~3 seconds for Dual Iris & Face Capture
||Mirror, Multicolor LED indicator

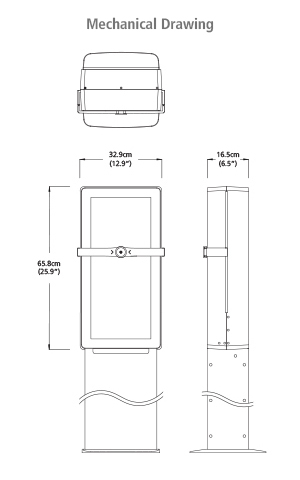

|Dimensions (W x H x D)
||329mm x 1082mm x 165mm (12.95” x 42.60” x 6.5”)
||Iris Camera with Dual Band NIR illumination
Minimum 200 pixels/cm Iris in Operating Range (750 ±250mm)
||5 MP Face camera ICAO full frontal compliant
Motion detection available
||Iris ID iCAM Device Control SDK CPU Intel i5-3317U
||4GB memory and 32GB storage
||10/100 Base-T Ethernet (RJ-45)
Power Source 100~240VAC power supply
Max power consumption: 200W
Iris ID Velocity Measurement
||200 x 500 x 500mm (W x H x D)
||CE, FCC, KC, Eye Safety, ISO Standard, KISA
