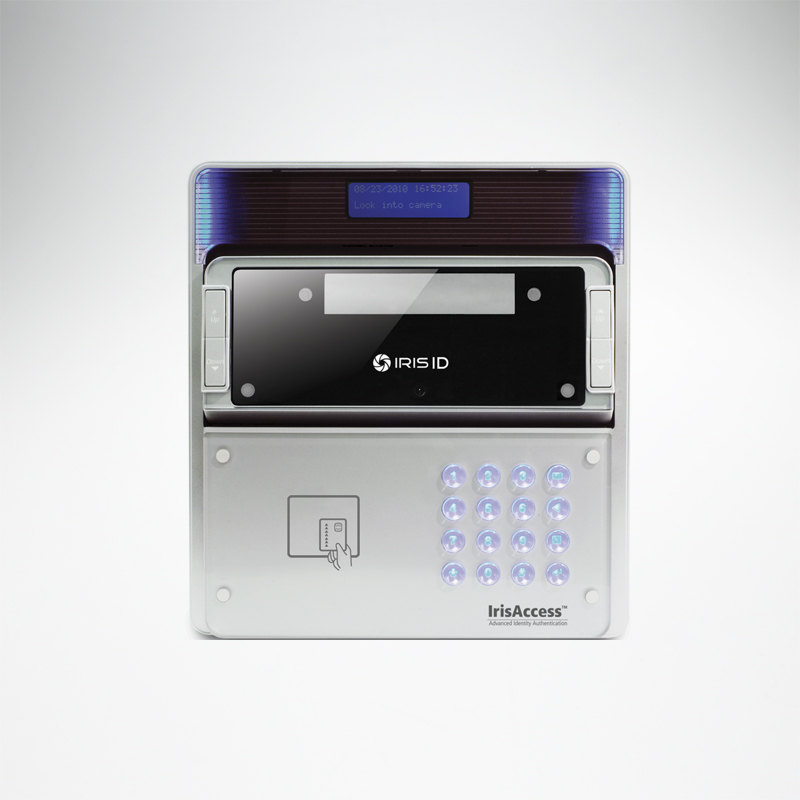

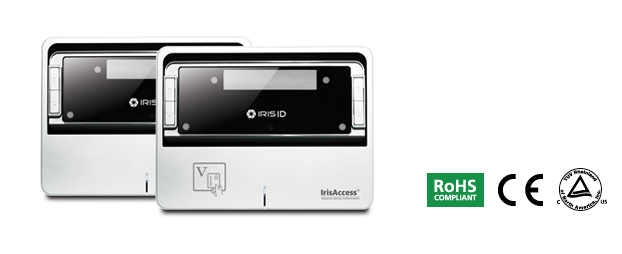

iCAM4000 series
  • Features
  • Tech Specs
Production Ceased - 2011
Replacement product iCAM7000 series
The iCAM4000 or 4010 with embedded smart card is the best-selling model in the IrisAccess 4000 range. Simultaneous two-eye capture, face-badging camera, motorized height adjust, iCAM4000 is easily configured for use in a kiosk as well as in applications where a traditional wall-mount is used.
Key Features
  • Most intuitive interface for effortless enrollment and recognition
  • Audio cues help guide user, report on authentication status
  • Visual cues to operation/authentication status clearly visible
  • Integrated face camera for badging with built-in illuminators
  • Designed with security in mind – no biometric data stored on reader
  • Can be ordered with optional device embedded readers (PROX, MIFARE,DESFire, iCLASS)
  • When used with cards, card intelligence can be programmed to align imager at user's proper height
  • Can be configured with external card readers to provide high security overlay in legacy environments
  • Can be flush or recess mounted
  • TCP/IP and Wiegand interfaces
  • Integrated face camera for badging with built in illuminators
Production Ceased - 2011
Replacement product iCAM7000 series
iCAM4000 series
Dimensions (WxHxD) 8.6" x 6.5" x 3.2" (218mm x 164mm x 80mm)
Weight 4.4 lbs (2kg)
Power Consumption 40W (This maximum power consumption rating should be used if a 3rd party power supply is used for the iCAM.)
LED Indication Power(blue), Operating Range(green), Out of Range(orange), Accept(green blink), Reject(orange blink)
Voice Indication Flexable Voice Message (English: standard, Other Language: downloading available)
Internal Components Modified 16x Zoom B/W CCD Camera, 2 IR LED
Camera Control RS232
LED Indication Power(blue), Active(green blink), Accept(green), Reject(red), Connection down(blink red)
Operating Range 10.2" - 14.2" (26cm - 36cm)
Operating Temperature 32°F - 104°F (0°C - 40°C)
Storage Temperature -4°F - 140°F (-20°C - 60°)
Humidity Up to 95% non-condensing
Rotation Angle +35°/-25°
Interface Ethernet, USB, Prox Card Reader (Wiegand & RS422), Smart Card Reader
Included AC Power Cable, AC Power Adapter, Straight Ethernet Cable
Power Supply (included)  (cable ends not included)
Model Number LSE9901B1260
Dimensions (WxHxD) 2.5" x 1.25" x 4.25" (64mm x 32mm x 108mm)
Input 120-240 VAC @ 1.5A
Output 12VDC @ 5A
